48V 12AH battery 250-500W motor lady style Pedals assisted electric bike 16”wheel
Quick Details
1. Motor power: 48V 350W brushless motor
2. Frame material: steel
3. Lead acid battery: 48V 12Ah exporting version
4. Wheel size: 16”x2.5
5. Brake system: drum brake for front
6. Headlamp: LED style
7. Speed: 25-32KM/H
8. Seat: front and back double seats design
Product Descriptions
EBS570 is one new cost-effective pedals assisted electric scooter/bike. It’s designed with front and back double seats, it’ s great solution for lady and child, go to school, go shopping…
The battery use 48V 12Ah lead acid gel battery exporting version, with removable battery box, it’s easy to take away make charge. Also support lithium battery.
The front brake system made with drum brake. Rear brake with servo safety brake with locking motor function.
Components Introduction
1. Alarm system, it’s a useful burglar alarm. When you park your bike anywhere, someone else touch or take your bike, it will make alarm at once.
2. 48V 12Ah battery, can make your travel distance over 40km by PAS.
3. Drum brake system, can ensure your safe drive.
4. LED headlamp, turning lights and brake light.
5. Comfortable dual seats, for two persons design. The front seat height can be adjustable, to be suitable for different users.

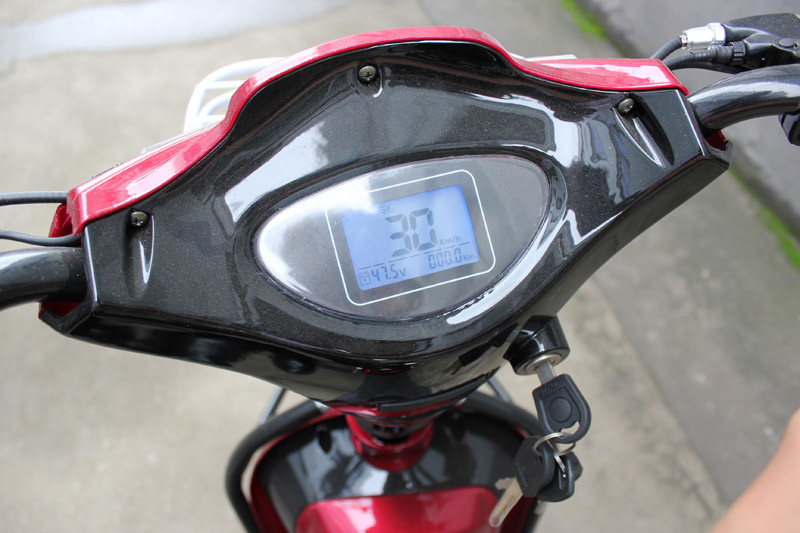

6. Digital speedometer, can show the battery power, speed, voltage, travel distance information.
7. Rear Servo safety brake with locking motor function, to make your bike more security. When insert the key in brake hole, and turn right direction, the motor will be Locked, can not move any more.
Key Features
Specifications
| Model number | EBS570 |
| Motor | 48V 350W rear brushless motor |
| Battery | 48V 12Ah lead acid battery, removable easily |
| Charge time | 4-8h |
| Charger | 48V 1.8A, plug can be customized |
| Controller | 48V 15A |
| Speed | 25-32Km/h |
| Driving distance | 40-45km by PAS |
| Weight | 51Kgs |
| Packing dimension | 1580x330x900mm |
| Panel/speedometer | Digital style |
| Driving mode | Pedals assist system and Throttle |
| Wheel | 16” |
| Tire | 16”x2.5 |
| Chain | Stainless |
| Frame | Steel 16” |
| Fork | Steel with suspension, 16” |
| Shift lever | -- |
| Rear derailleur | -- |
| Front brake | Drum Brake |
| Rear brake | Servo safety Brake with locking motor function |
| Brake levers | Aluminum |
| Rims | Aluminum alloy |
| Spokes | -- |
| Pedals | Normal |
| Chainwheel | 32T |
| Cranks | Steel |
| Freewheel | 16T |
| Handlebar | Steel |
| Stem | -- |
| Grip | 136MM |
| Seat | dual |
| Seat tube | -- |
| Headlamp | LED style |
| Fenders | Plastics |
| Wheel base | 1100mm |
| Min ground clearance | 110mm |
| Saddle ground clearance | Front:770mm; Rear:570mm |
| Handlebar ground clearance | 1000mm |
| Licence requirement | NO |
Pictures Show
Payment Method
For trial order, we accept Paypal payment. For full container order, we use 30% down payment and 70% rest depends on Bill of Lading.
Delivery Time
The sample order, will finish the production in 15days; for full container order, finish in 30days.
Our advantages
11 years sales experiences in oversea market. We are able to be your purchasing consultants for new buyers.
We pay more attention on products quality. Our main market are European countries, North America and South America.
Our products contain electric bike, electric scooter, electric motorcycle, mobility scooter and conversion kits, can meet customer’s variety of demands.
We built 200 square meters professional Show room to show some popular models. And one hour to Shanghai and Ningbo port.
Our electric bicycles comply with CE, RoHS and EN15194 regulations.
