Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System

HANGZHOU DREAM WHEEL TECHNOLOGY CO.,LTD.

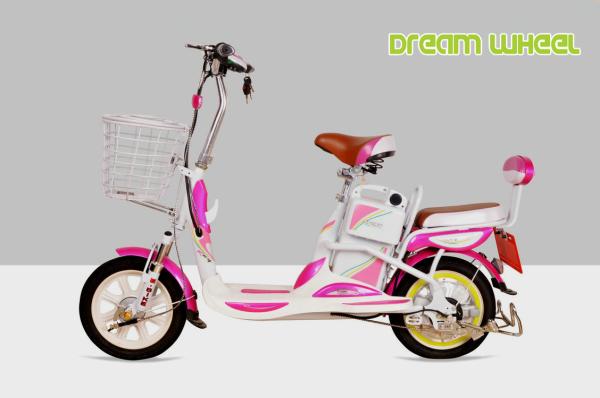

Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System

Brand Name : DREAM WHEEL

Model Number : EBS530

Certification : CE

Place of Origin : CHINA

MOQ : 2 units

Price : USD

Payment Terms : T/T, L/C, Western Union

Supply Ability : 3000pcs per month

Delivery Time : 30 days

Packaging Details : Carton and protecting cover

Color : Pink and white; Blue and white, Yellow and white

Seat : dual

Container loading : 52pcs in 1x20"; 134pcs in 1x40"HQ

Delivery time : 30days for full container

Contact Now

Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System



Quick Details



1.  Motor power: 48V 350W brushless motor

2.  Frame material: steel

3.  Lead Acid Gel battery: 48V 12Ah

4.  Wheel size: 14”

5.  Brake system: drum brake for both wheels

6.  Derailleur system: No

7.  Pedals assisted system and Throttle: Only throttle system now



Product Descriptions



EBS530 is one fashion electric bike with new design in 2014. The new design frame, seat and plastic cover integrated all colorful parts on one bike, looks beautiful and unique.



This bike also offer two seats.  The rear seat for child is better.   Battery box under seat, can take away very convenient.



The brake cables, use special cover will make cable more nice and quality.



Components



1.  48V 12Ah lead acid gel battery, made by TIANNENG, China motive power 1st  shares. China High quality electric bike battery power manufacturer.



2.  LED headlamp, turning lights and brake light.  Save battery power, make your drive more longer.



3.  Suspension fork, make your driving more comfortable.



4.  High strength frame, looks nice and ensure safety on the way.



5.  Big front basket, can take your goods very useful.  The rear brake with Lock motor function, make your bike more safe.



Specifications



Model number

EBS530

Motor

48V 350W rear brushless motor

Battery

48V 12Ah lead acid gel battery, removable easily

Charge time

4-8h

Charger

 48V 1.8A, plug can be customized

Controller

 48V 20A

Speed

32Km/h

Driving distance

35-40km

Weight

48Kgs

Packing dimension

1580x330x880mm

Panel/speedometer

 --

Driving mode

 Throttle only

Wheel

14”

Tire

14”x2.125

Chain

--

Frame

Paint with electrophoretic coating , 14”

Fork

Steel with suspension, 14”

Shift lever

--

Rear derailleur

--

Front brake

Drum Brake

Rear brake

Drum Brake with lock motor function

Brake levers

 Aluminum

Rims

Aluminum alloy

Spokes

--

Pedals

--

Chainwheel

--

Cranks

--

Freewheel

--

Handlebar

 Steel, W590

Stem

--

Grip

136MM

Seat

--

Seat tube

--

Headlamp

LED

Fenders

plastics

Wheel base

1170mm

Min ground clearance

110mm

Saddle ground clearance

Max:950mm; Min:810mm

Handlebar ground clearance

1050mm

Licence requirement

NO



Pictures Show



Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle SystemMini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System



Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System



Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System

Mini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle SystemMini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle SystemMini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle SystemMini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle SystemMini Cool Pedal Assist Electric Bike 350W 48V Pink White Fashion Throttle System
